# Custom Actions
Let your agent look things up and take action in your other systems — order status, bookings, tickets — in the middle of a conversation.
A **Custom Action** lets your agent talk to another system while it is chatting. Instead of only answering from the content you trained it on, it can look something up live — an order status, a booking, a customer record — and answer from what comes back. It can also send information out, such as creating a support ticket.
You describe, in plain English, *when* the agent should use the action. The agent decides the rest.
{% hint style="info" %}
Custom Actions are available on the **Essential** and **Business** plans — and unlocked free while you are on the **Free Full Access** trial. How many actions you can add depends on your plan.
{% endhint %}
***
## A quick example
You sell online and visitors keep asking *"where is my order?"*
You add one action that reads your store's order records. Now:
> **Visitor:** Where's my order 1042? **Agent:** Let me check that for you… Order 1042 was paid on 12 August and is currently *Processing*. The total was $89.00.
The agent asked for the order number, fetched the real record, and answered from it — no one on your team was involved.
***
## Before you start
You need a **web address** from the other system that returns the information you want, plus whatever login details it requires (usually a key or token). If you are not sure what these are, the person who set up that system — or its support team — will know. Every service words it differently, but "API access" is the phrase to ask for.
***

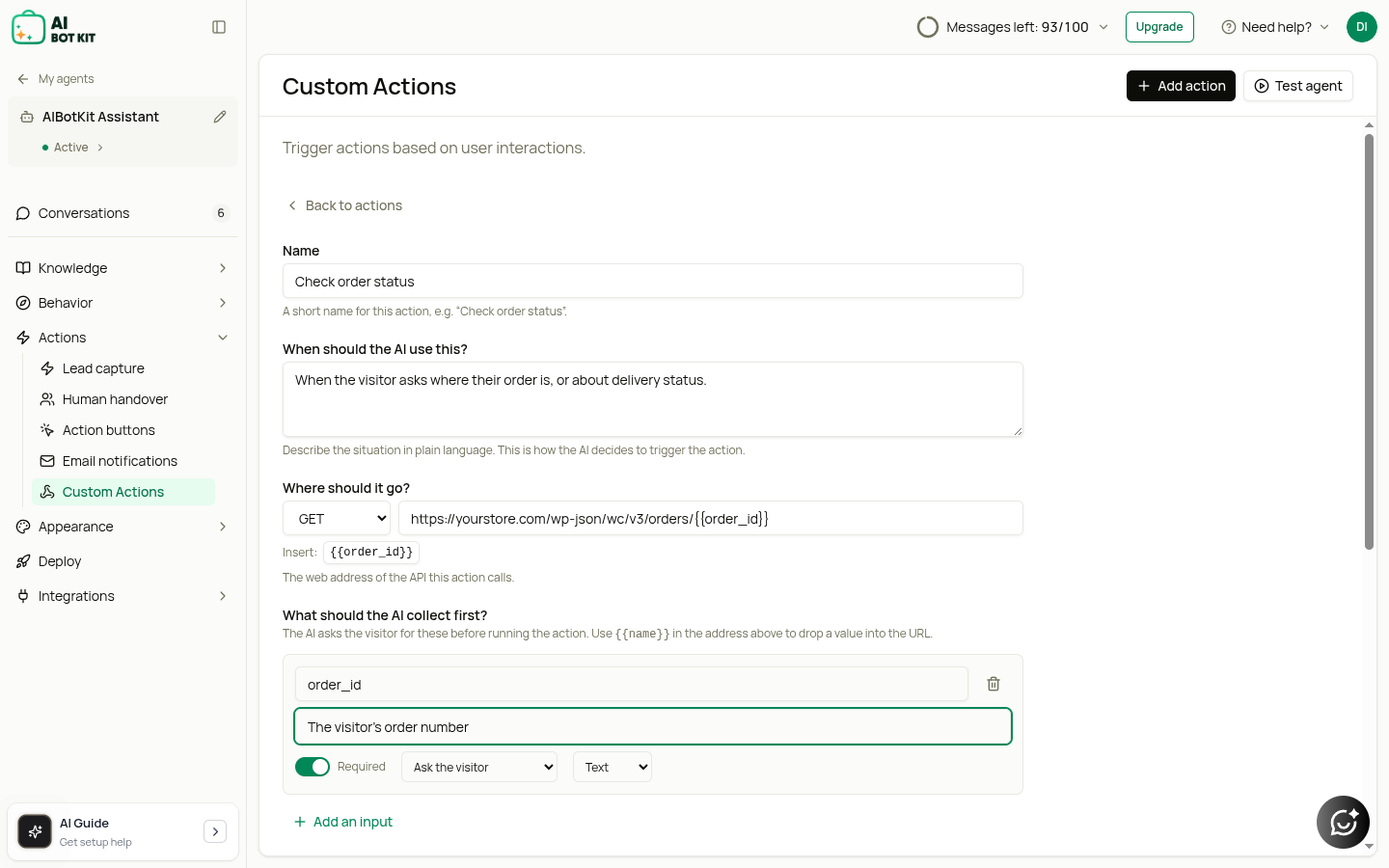

## Creating an action

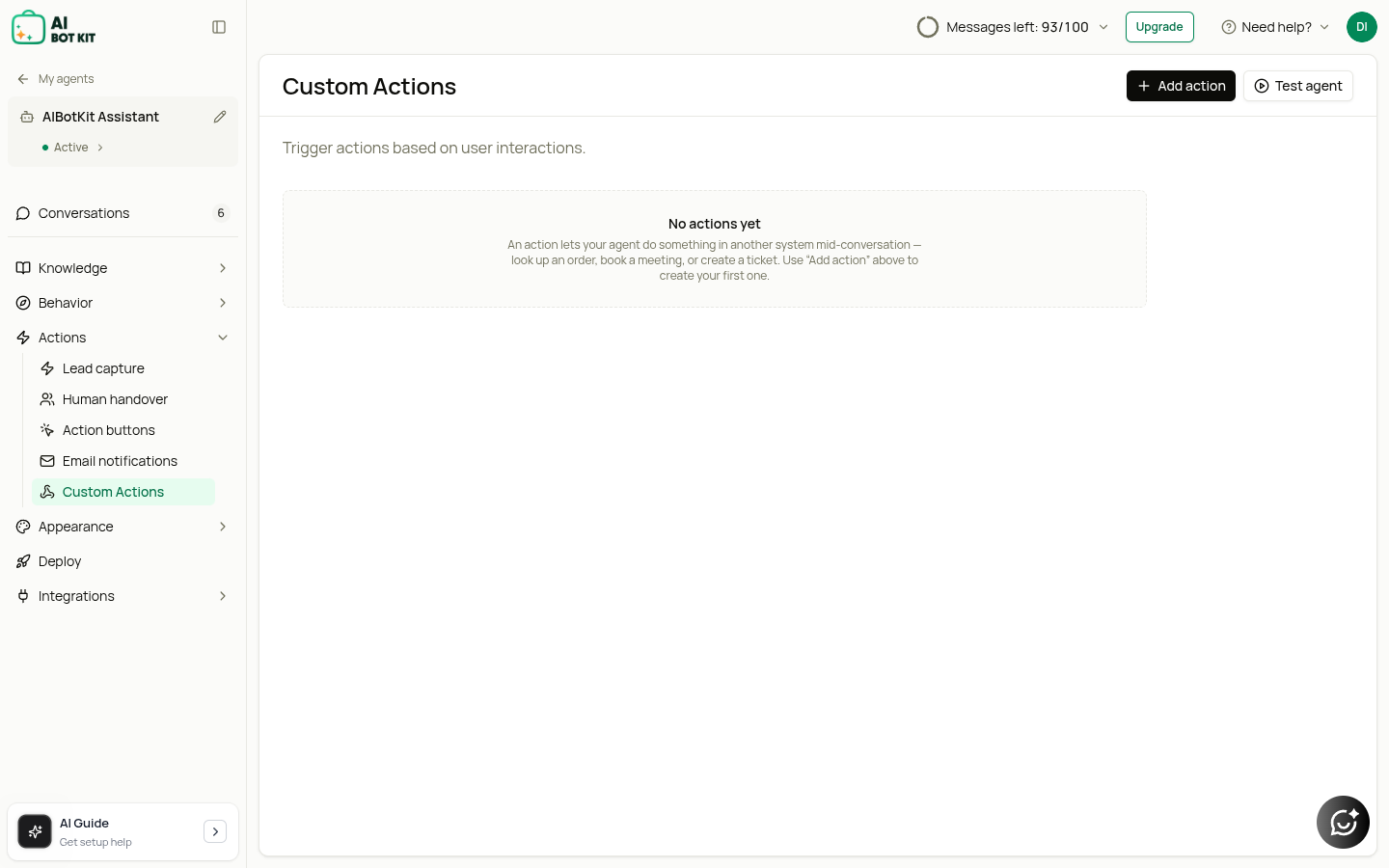

1. Open your agent and go to **Actions → Custom Actions** in the left sidebar.
2. Click **Add action** (top right).
3. Fill in the form, top to bottom. Only the first three fields are required.
### Name
A short, human name for the action, e.g. *Check order status*. This is how it appears in your list.
### When should the AI use this?
This is the most important field on the page. Describe the situation that should trigger the action, in plain English:
> *When the visitor asks where their order is, or about delivery status.*
The agent reads this and decides when to act. Be specific about the situation, not about the mechanics — you are describing a moment in a conversation, not giving instructions.
### Where should it go?
Pick the **request method** (most look-ups are `GET`; most "create something" actions are `POST`) and paste the web address.
If the address needs a value the agent has to collect — an order number, an email — add it as an input first (below), then use the **Insert:** buttons underneath the address to drop it in. It appears as a tag like `{{order_id}}`:
```
https://yourstore.com/wp-json/wc/v3/orders/{{order_id}}
```
### What should the AI collect first?
The pieces of information the action needs before it can run. For each one you set:
* **Name** — a short label such as `order_id`, used in the address and body
* **Description** — what the agent should ask for, e.g. *"The visitor's order number"*. The agent uses these exact words when it asks, so write them the way you want the question to sound.
* **Required** — tick this if the action cannot run without it. The agent will keep asking until it has it.
* **Where it comes from**:
* **Ask the visitor** — the agent asks in conversation
* **From the conversation** — filled in automatically: *Visitor name*, *Visitor email*, *Visitor phone*, *Chat summary*, *Conversation ID*, *Agent ID*
* **Fixed value** — always the same, set by you
* **Type** — *Text*, *Number*, or *Yes/No*
{% hint style="info" %}
The agent asks for these naturally, and can collect several at once if the visitor volunteers them. It will not ask for anything it already knows.
{% endhint %}
### Try it out
Before saving, click **Try it out** to run the action for real, with a value you supply. You will see exactly what the other system sends back.
**Do this before the next step** — the field list below is built from this reply, so testing first turns the next question into a simple tick-list instead of guesswork.

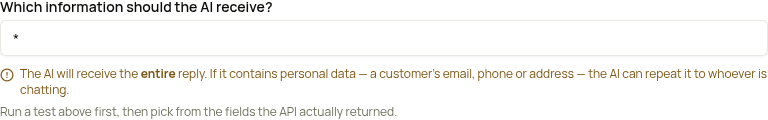

### Which information should the AI receive?
Once you have run a test, this becomes a dropdown listing every field the other system returned. Tick the ones the agent is allowed to read.
{% hint style="warning" %}
**Leave it untouched and the agent receives the whole reply.** That is usually what you want, but if the reply contains personal data — a customer's email, phone or home address — the agent can repeat it to whoever is chatting. If the reply carries more than the visitor should see, tick only the fields you need. A warning appears on screen whenever the whole reply is being shared.
{% endhint %}
Use **Pin to these fields** to lock the selection to exactly the fields you can see today — useful if the other system might start returning more later. **All fields** shares everything, now and in future.
### Message when it fails
What the visitor sees if the other system is down or refuses the request. Keep it calm and useful:
> *I couldn't reach our order system just now — please try again in a moment, or email .*
***
## Advanced settings
Everything the average action does not need is tucked behind **Advanced settings**. Open it only if the other system asks you for one of these.
### Authentication
How the other system checks the request is really from you. Pick the method it documents:
| Method | What you enter |
| ------------------------ | ------------------------------------------------------------------------------------------------------ |
| **None** | Nothing — the address is open |
| **Bearer token** | A single token string |
| **API key** | The key's name and value, and whether it is sent as a header or in the address |
| **Username & password** | The two, as given to you |
| **Google account** | Connect with a click — see [Google Meet booking](/documentation/chatbot-editor/google-meet-booking.md) |
| **Other OAuth provider** | Token address, client ID, client secret and refresh token |
{% hint style="success" %}
Your credentials are encrypted before they are stored, and are never shown again after you save — you will see only the last few characters. To replace one, type the new value over the top.
{% endhint %}
### The rest
* **Custom headers** and **Query parameters** — extra name/value pairs, if the other system asks for them
* **Request body** — for `POST`/`PUT` actions: send the inputs as **JSON** (the default), as **Form data**, or build your own **Custom JSON request body** using the `{{ }}` tags
* **Timeout (seconds)** — how long to wait before giving up. The default suits nearly everything.
* **Maximum reply length** — caps how much of a large reply is passed to the agent
* **Save contact details as a lead** — also records the visitor's name, email and phone under **Leads**
***
## Managing your actions
Each action appears as a card in the list:
* The **toggle** turns it on or off without deleting it — useful for pausing one temporarily
* **Edit** reopens the form; **Back** at the top returns you to the list
* The **trash icon** removes it
* An action whose sign-in details are missing shows a marker so you can spot it before a visitor does
{% hint style="warning" %}
Changes are only saved when you click **Save changes** in the bar at the top of the screen. Clicking **Done** inside the action form closes the form but does not save it yet. If you leave the page with unsaved work, the app will ask you first.
{% endhint %}
***
## What your visitors see
Visitors never see the action, its address, or your credentials. From their side it is a normal conversation — the agent asks for what it needs, pauses briefly, and answers with the real information:
> **Visitor:** Can you check order 1042? **Agent:** One moment… That order is *Processing* and was placed on 12 August.
If the action fails, they see your **Message when it fails** and nothing else.
***
## More examples
**Support ticket**
* **Name:** Create support ticket
* **When should the AI use this?** *When the visitor reports a bug or a problem the agent cannot solve.*
* **Collect:** `subject` (Ask the visitor), `email` (From the conversation → Visitor email)
* **Method:** `POST` to your helpdesk's address
**Delivery lookup**
* **Name:** Track shipment
* **When should the AI use this?** *When the visitor asks where their parcel is or for a tracking update.*
* **Collect:** `tracking_number` (Ask the visitor, required)
* **Method:** `GET`, with `{{tracking_number}}` in the address
***
## Troubleshooting
**The agent never uses my action.** Your **When should the AI use this?** description is probably too vague or too narrow. Rewrite it as the situation a visitor would actually be in, and test with the wording a real visitor would use.
**The agent keeps asking for the same thing.** Check that input's **Description** reads like a question you would ask, and that it is not marked **Required** if the action can work without it.
**It answers with a generic line instead of the data.** Open the action and check **Which information should the AI receive?** — if you ticked a small number of fields, the agent only sees those.
**"Authentication not configured".** Open the action, expand **Advanced settings → Authentication**, and re-enter the credentials.
---
